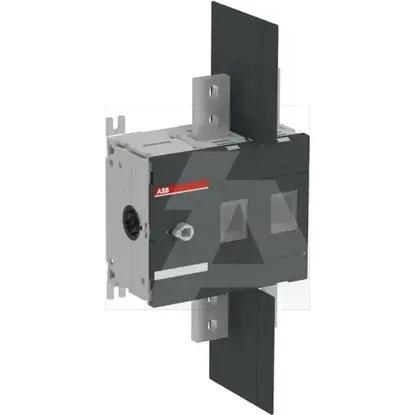

1SCA112977R1001 | OT800U02
Code: 1982211
ManufacturerABB
Catalog number1SCA112977R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019456416
Details
- •OT800U02 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth151.5mm
Number of auxiliary contacts as normally open contact0
Height372mm
Number of auxiliary contacts as normally closed contact0
Width254.5mm
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as emergency stop installationNo
Width in number of modular spacings-
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Type of control elementOther
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw50kA
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
InterlockableNo
Number of switches1
Version as safety switchNo
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive optionalNo
Degree of protection (IP), front sideIP00
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu800A
Number of poles2
Max. rated operation voltage Ue AC1000V
