Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth167mm
Number of poles2
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu1250A
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Width254.5mm
Height306mm
Device constructionComplete device in housing
Suitable for distribution board installationYes
Motor drive optionalNo
Version as safety switchNo
Number of switches1
Version as maintenance-/service switchYes
Rated short-time withstand current lcw50kA
Suitable for front mounting 4-holeNo
Switching power at 400 V710kW
Type of control elementOther
Version as main switchYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1250A
InterlockableNo
Voltage release optionalNo
Rated operation power at AC-23, 400 V710kW
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Max. rated operation voltage Ue AC1000V
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP00
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V1250A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

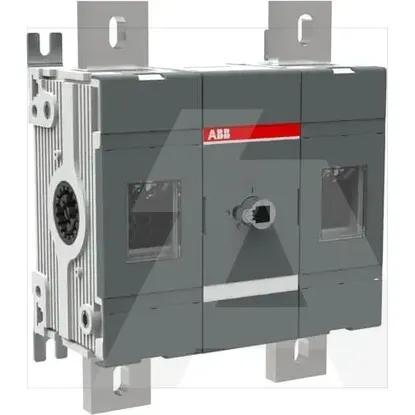

1SCA113105R1001 | OT1250E11
