Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles2
Height372mm
Width in number of modular spacings-
Width254.5mm
Depth167mm
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu1600A
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Number of switches1
Number of auxiliary contacts as change-over contact0
InterlockableNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V710kW
Type of control elementOther
Version as safety switchNo
Version as reversing switchNo
Rated short-time withstand current lcw50kA
Version as main switchYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1600A
Switching power at 400 V710kW
Version as emergency stop installationNo
Voltage release optionalNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V1250A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

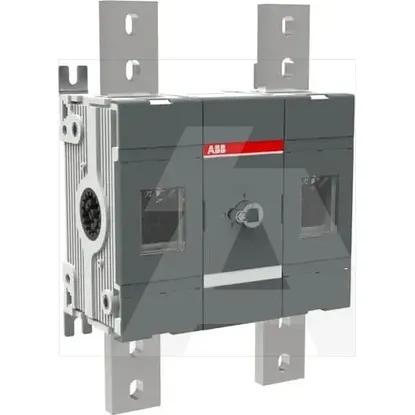

1SCA113106R1001 | OT1600E11
