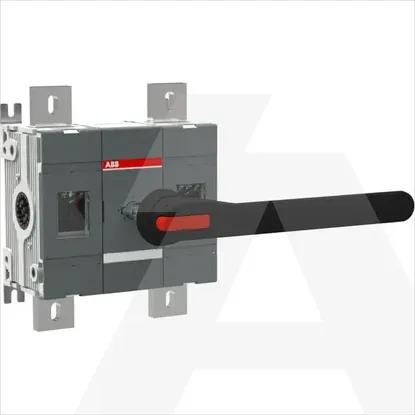

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth145.5mm
Height306mm
Width254.5mm
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu1250A
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of poles2
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Colour control elementBlack
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw50kA
Version as safety switchNo
Version as main switchYes
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1250A
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V1250A
Switching power at 400 V710kW
Degree of protection (NEMA)Other
Voltage release optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA113107R1001 | OT1250E11P
