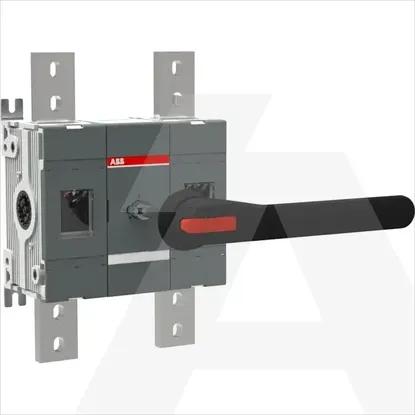

1SCA113108R1001 | OT1600E11P
Code: 1982215
ManufacturerABB
Catalog number1SCA113108R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019457635
Details
- •OT1600E11P LOAD SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Depth167mm
Height372mm
Width254.5mm
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Number of switches1
Version as main switchYes
Suitable for front mounting 4-holeNo
InterlockableNo
Suitable for distribution board installationNo
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementLong turning handle
Motor drive integratedNo
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Conditioned rated short-circuit current Iq-kA
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V710kW
Colour control elementBlack
Rated short-time withstand current lcw50kA
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V1600A
Switching power at 400 V710kW
Voltage release optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
Rated permanent current Iu1600A
Number of poles2
Max. rated operation voltage Ue AC1000V
