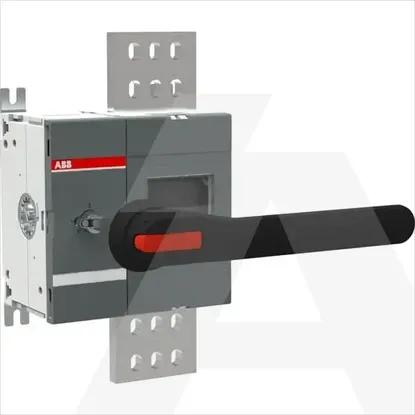

1SCA113954R1001 | OT2500E01P
Code: 1982225
ManufacturerABB
Catalog number1SCA113954R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019465913
Details
- •OT2500E01P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Width220.5mm
Number of auxiliary contacts as normally open contact0
Height376.5mm
Depth145.5mm
Rated operation power at AC-3, 400 V-kW
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Rated short-time withstand current lcw55kA
Version as safety switchNo
Suitable for distribution board installationYes
InterlockableNo
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Number of switches1
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Colour control elementBlack
Version as main switchYes
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Voltage release optionalNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Device constructionComplete device in housing
Rated permanent current Iu-A
Number of poles1
Max. rated operation voltage Ue AC1000V
