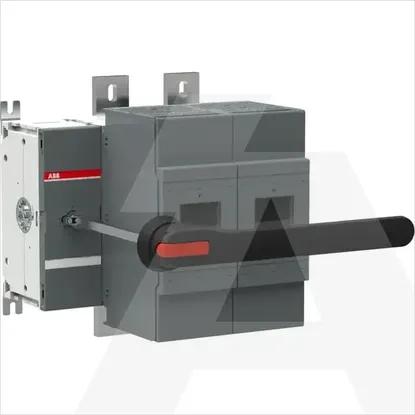

1SCA114059R1001 | OS1250DA02P
Code: 1982228
ManufacturerABB
Catalog number1SCA114059R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019466354
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Cable entryOther
Rated short-time withstand current lcw40kA
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V1000kW
Version as emergency stop installationNo
Version as main switchYes
Position control elementLeft
Motor drive optionalNo
Suitable for busbar mountingYes
Equipped with connectorsYes
With error protectionNo
Suitable for front mountingNo
Suitable for floor mountingNo
Rated permanent current Iu1000A
Number of poles2
Suitable for fusesNH4a
Max. rated operation voltage Ue AC1000V
