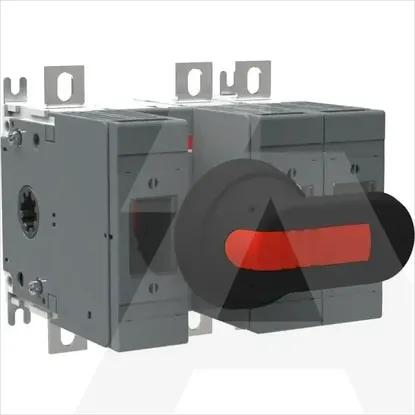

1SCA114624R1001 | OS125GF12P
Code: 1982231
ManufacturerABB
Catalog number1SCA114624R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019470443
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as safety switchYes
Cable entryOther
Position control elementFront side
Version as emergency stop installationNo
Suitable for busbar mountingYes
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Equipped with connectorsYes
Version as main switchYes
Motor drive integratedNo
Suitable for floor mountingNo
With error protectionNo
Rated operation power at AC-23, 400 V110kW
Suitable for front mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw5kA
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu125A
Number of poles3
Suitable for fuses22x58 mm
Max. rated operation voltage Ue AC1000V
