Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current Iu500A
Max. rated operation voltage Ue AC1000V
Rated operating voltage1000 - 1000V
Switching power at 400 V132kW
Rated operation power at AC-3, 400 V-kW
Rated short-time withstand current lcw15kA
Conditioned rated short-circuit current Iq-kA
Version as reversing switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V132kW
Rated permanent current at AC-21, 400 V500A
Rated permanent current at AC-23, 400 V400A
Number of auxiliary contacts as normally closed contact0
Number of poles3
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive integratedNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
InterlockableNo
Type of control elementOther
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Degree of protection (IP), front sideIP00
Degree of protection (NEMA)Other
Width196mm
Depth107mm
Width in number of modular spacings-
Height185mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

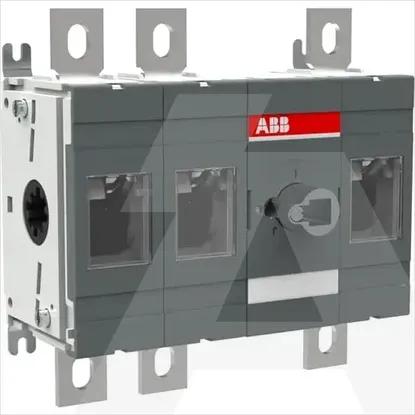

1SCA114847R1001 | OT500E21
