Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu500A
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of poles3
Number of auxiliary contacts as normally closed contact0
Height185mm
Width196mm
Depth107mm
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
InterlockableNo
Version as emergency stop installationNo
Motor drive integratedNo
Rated short-time withstand current lcw15kA
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V132kW
Type of control elementLong turning handle
Voltage release optionalNo
Colour control elementBlack
Version as main switchYes
Device constructionComplete device in housing
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V500A
Max. rated operation voltage Ue AC1000V
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Switching power at 400 V132kW
Version as safety switchNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V400A
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

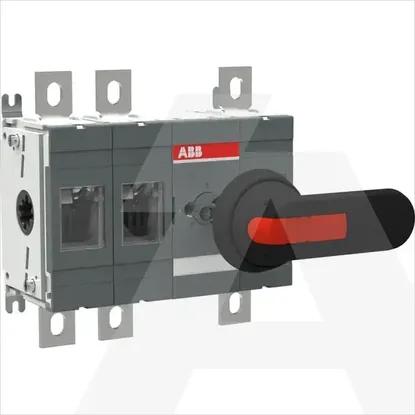

1SCA114848R1001 | OT500E21P
