Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth167mm
Width594.5mm
Height372mm
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu1600A
Number of switches1
Rated operation power at AC-3, 400 V-kW
Number of poles3
Width in number of modular spacings-
InterlockableNo
Motor drive integratedNo
Version as main switchYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Colour control elementBlack
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V710kW
Version as safety switchNo
Rated short-time withstand current lcw50kA
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Switching power at 400 V710kW
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V1600A
Suitable for distribution board installationNo
Motor drive optionalNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

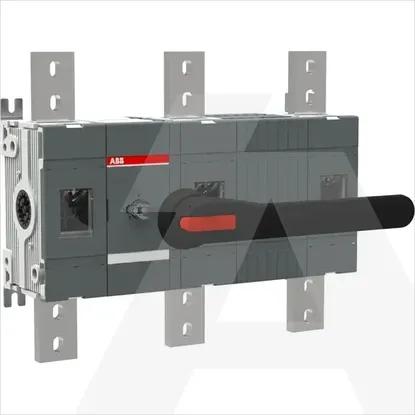

1SCA115013R1001 | OT1600E12W8P
