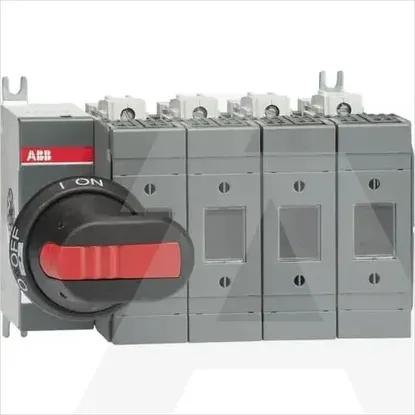

1SCA115446R1001 | OS60GJ04FP
Code: 1982252
ManufacturerABB
Catalog number1SCA115446R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019478043
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V55kW
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for front mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw2.5kA
Position control elementLeft
Version as safety switchYes
With error protectionNo
Equipped with connectorsYes
Rated permanent current Iu63A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
