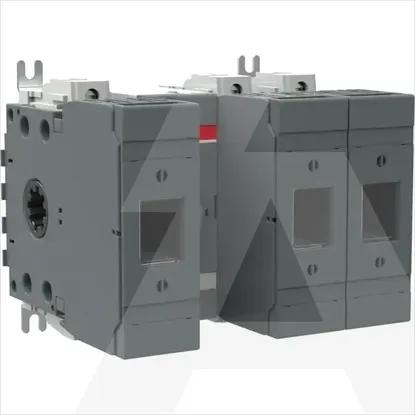

1SCA115448R1001 | OS60GJ12
Code: 1982253
ManufacturerABB
Catalog number1SCA115448R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019538662
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V55kW
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Suitable for front mountingNo
Rated short-time withstand current lcw2.5kA
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Motor drive integratedNo
Version as safety switchYes
Type of control elementShort thumb-grip
With error protectionNo
Suitable for busbar mountingYes
Motor drive optionalNo
Position control elementFront side
Equipped with connectorsYes
Rated permanent current Iu63A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115448R1001 | OS60GJ12
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Version as emergency stop installation
Rated operation power at AC-23, 400 V
55kW
Version as main switch
Conditioned rated short-circuit current Iq
80kA
Suitable for front mounting
Rated short-time withstand current lcw
2.5kA
Type of electrical connection of main circuit
Screw connection
Suitable for floor mounting
Motor drive integrated
Version as safety switch
Type of control element
Short thumb-grip
With error protection
Suitable for busbar mounting
Motor drive optional
Position control element
Front side
Equipped with connectors
Rated permanent current Iu
63A
Number of poles
3
Suitable for fuses
Other
Max. rated operation voltage Ue AC
1000V
