Details
- •Low-voltage industrial components

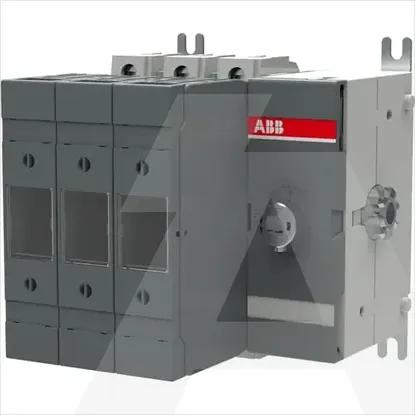

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitScrew connection
Cable entryOther
Version as emergency stop installationNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V55kW
Version as main switchYes
Type of control elementShort thumb-grip
With error protectionNo
Version as safety switchYes
Suitable for front mountingNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Rated short-time withstand current lcw2.5kA
Motor drive optionalNo
Equipped with connectorsYes
Position control elementRight
Rated permanent current Iu63A
Number of poles3
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115573R1001 | OS63GD30
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Type of electrical connection of main circuit
Screw connection
Cable entry
Other
Version as emergency stop installation
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Rated operation power at AC-23, 400 V
55kW
Version as main switch
Type of control element
Short thumb-grip
With error protection
Version as safety switch
Suitable for front mounting
Suitable for floor mounting
Suitable for busbar mounting
Rated short-time withstand current lcw
2.5kA
Motor drive optional
Equipped with connectors
Position control element
Right
Rated permanent current Iu
63A
Number of poles
3
Suitable for fuses
NH000
Max. rated operation voltage Ue AC
1000V
