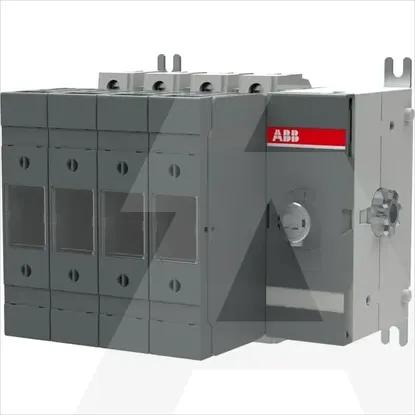

1SCA115575R1001 | OS32GD40N1
Code: 1982264
ManufacturerABB
Catalog number1SCA115575R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019479156
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitScrew connection
Suitable for busbar mountingYes
Suitable for front mountingNo
Version as emergency stop installationNo
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V22kW
Type of control elementShort thumb-grip
Version as safety switchYes
Suitable for floor mountingNo
Equipped with connectorsYes
With error protectionNo
Motor drive optionalNo
Position control elementRight
Rated permanent current Iu32A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115575R1001 | OS32GD40N1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Type of electrical connection of main circuit
Screw connection
Suitable for busbar mounting
Suitable for front mounting
Version as emergency stop installation
Version as main switch
Rated short-time withstand current lcw
2.5kA
Rated operation power at AC-23, 400 V
22kW
Type of control element
Short thumb-grip
Version as safety switch
Suitable for floor mounting
Equipped with connectors
With error protection
Motor drive optional
Position control element
Right
Rated permanent current Iu
32A
Number of poles
4
Suitable for fuses
NH000
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
