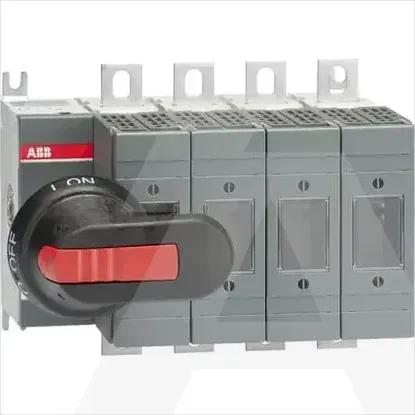

1SCA115686R1001 | OS125GD04FP
Code: 1982272
ManufacturerABB
Catalog number1SCA115686R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019479880
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Position control elementLeft
With error protectionNo
Rated short-time withstand current lcw5kA
Version as safety switchYes
Suitable for floor mountingNo
Version as emergency stop installationNo
Motor drive integratedNo
Suitable for busbar mountingYes
Rated operation power at AC-23, 400 V110kW
Version as main switchYes
Suitable for front mountingNo
Type of control elementLong turning handle
Equipped with connectorsYes
Rated permanent current Iu125A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
