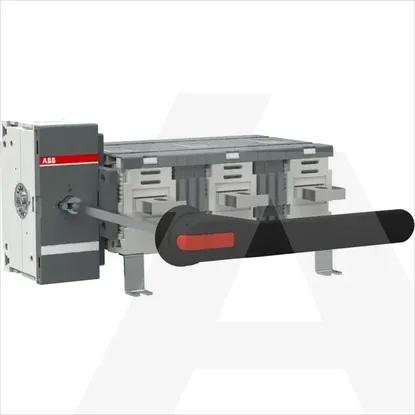

1SCA115805R1001 | OT1250EM03W4P
Code: 1982274
ManufacturerABB
Catalog number1SCA115805R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019480749
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height306mm
Rated operation power at AC-3, 400 V-kW
Width469.5mm
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
InterlockableNo
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of switches1
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Depth234mm
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Colour control elementBlack
Switching power at 400 V710kW
Version as maintenance-/service switchYes
Rated short-time withstand current lcw50kA
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Suitable for distribution board installationYes
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V1250A
Suitable for floor mountingNo
Suitable for front mounting centreNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated operation power at AC-23, 400 V710kW
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
