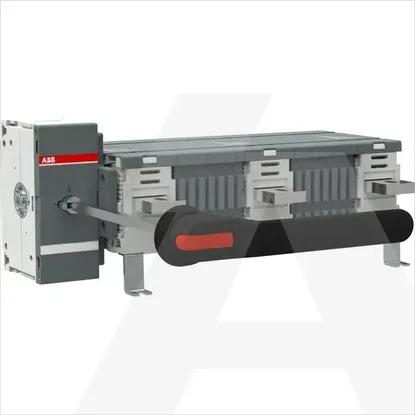

1SCA115810R1001 | OT1250EM03W8P
Code: 1982275
ManufacturerABB
Catalog number1SCA115810R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019480794
Details
- •OT1250EM03W8P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Height306mm
Width559.5mm
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Depth234mm
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Suitable for floor mountingNo
Version as safety switchNo
Degree of protection (IP), front sideIP00
Number of switches1
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V710kW
InterlockableNo
Motor drive integratedNo
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw50kA
Voltage release optionalNo
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Version as reversing switchNo
Device constructionComplete device in housing
Switching power at 400 V710kW
Degree of protection (NEMA)Other
Motor drive optionalNo
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
