Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width349.5mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height372mm
InterlockableNo
Version as emergency stop installationNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Number of switches1
Number of poles3
Width in number of modular spacings-
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Depth234mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Rated permanent current Iu1600A
Version as safety switchNo
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V710kW
With pre-assembled cablingNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V1250A
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Rated short-time withstand current lcw50kA
Suitable for floor mountingNo
Version as reversing switchNo
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V710kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

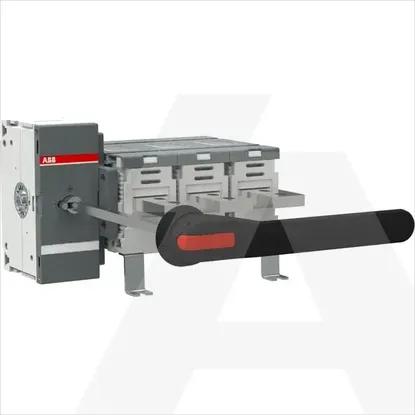

1SCA115815R1001 | OT1600EM03P
