Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width559.5mm
Height372mm
Version as emergency stop installationNo
Type of control elementLong turning handle
Motor drive integratedNo
Number of poles3
Rated short-time withstand current lcw50kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as maintenance-/service switchYes
Number of switches1
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Colour control elementBlack
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Suitable for floor mountingNo
Rated permanent current Iu1600A
Version as main switchYes
Width in number of modular spacings-
Depth234mm
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V710kW
Version as safety switchNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Switching power at 400 V710kW
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V1250A
Suitable for front mounting centreNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

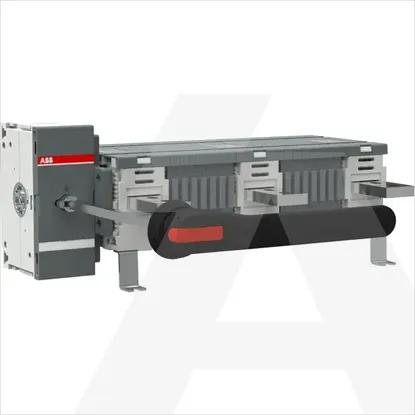

1SCA115827R1001 | OT1600EM03W8P
