Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width487.5mm
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Number of switches1
Width in number of modular spacings-
Motor drive integratedNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Depth234mm
Number of poles3
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Height376.5mm
Rated operating voltage1000 - 1000V
Type of control elementLong turning handle
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Colour control elementBlack
Rated permanent current at AC-21, 400 V-A
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw55kA
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionComplete device in housing
Voltage release optionalNo
Switching power at 400 V-kW
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-23, 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

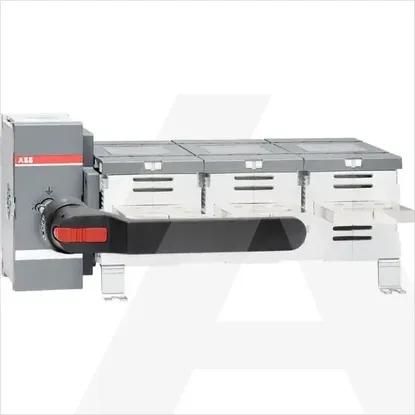

1SCA115835R1001 | OT2500EM03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
487.5mm
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as normally closed contact
0
Interlockable
Number of switches
1
Width in number of modular spacings
-
Motor drive integrated
Degree of protection (IP), front side
IP00
Number of auxiliary contacts as change-over contact
0
Depth
234mm
Number of poles
3
Rated operation power at AC-3, 400 V
-kW
Rated permanent current Iu
-A
Number of auxiliary contacts as normally open contact
0
Version as emergency stop installation
Height
376.5mm
Rated operating voltage
1000 .. 1000V
Type of control element
Long turning handle
Version as main switch
Version as maintenance-/service switch
Version as safety switch
Conditioned rated short-circuit current Iq
-kA
Colour control element
Black
Rated permanent current at AC-21, 400 V
-A
Suitable for distribution board installation
Suitable for floor mounting
Suitable for front mounting 4-hole
Rated short-time withstand current lcw
55kA
With pre-assembled cabling
Rated permanent current at AC-23, 400 V
-A
Version as reversing switch
Suitable for intermediate mounting
Degree of protection (NEMA)
Other
Suitable for front mounting centre
Motor drive optional
Device construction
Complete device in housing
Voltage release optional
Switching power at 400 V
-kW
Max. rated operation voltage Ue AC
1000V
Rated operation power at AC-23, 400 V
-kW
