Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height376.5mm
Rated permanent current Iu-A
Depth234mm
Rated operation power at AC-3, 400 V-kW
Width515.5mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Number of auxiliary contacts as change-over contact0
Number of switches1
Version as emergency stop installationNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as safety switchNo
Version as maintenance-/service switchYes
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Device constructionComplete device in housing
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated short-time withstand current lcw55kA
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

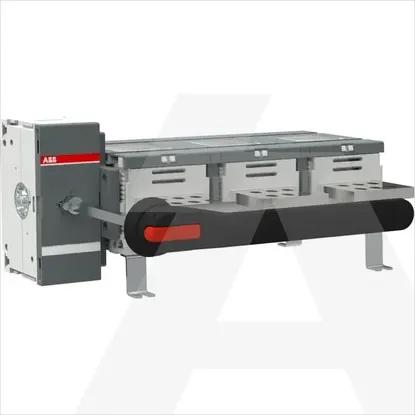

1SCA115840R1001 | OT2500EM03W4P
