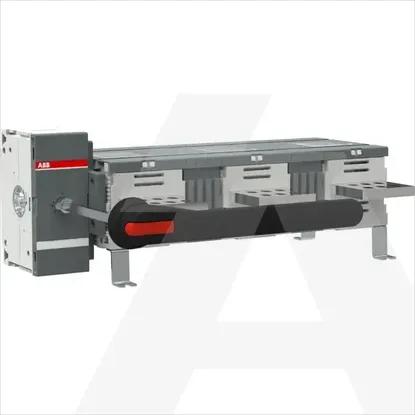

1SCA115843R1001 | OT2500EM03W8P
Code: 1982281
ManufacturerABB
Catalog number1SCA115843R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019481081
Details
- •OT2500EM03W8P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V-kW
Depth234mm
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Width605.5mm
Motor drive integratedNo
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Height376.5mm
Number of auxiliary contacts as change-over contact0
Number of switches1
Width in number of modular spacings-
InterlockableNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw55kA
Colour control elementBlack
Suitable for intermediate mountingNo
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V-A
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for distribution board installationYes
Degree of protection (NEMA)Other
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
