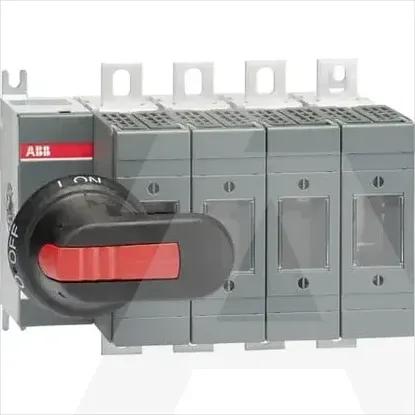

1SCA115877R1001 | OS125GD04N2P
Code: 1982283
ManufacturerABB
Catalog number1SCA115877R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019481456
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Cable entryOther
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
Suitable for busbar mountingYes
Rated operation power at AC-23, 400 V110kW
Suitable for floor mountingNo
Position control elementLeft
Motor drive optionalNo
Suitable for front mountingNo
With error protectionNo
Rated short-time withstand current lcw5kA
Equipped with connectorsYes
Rated permanent current Iu125A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
