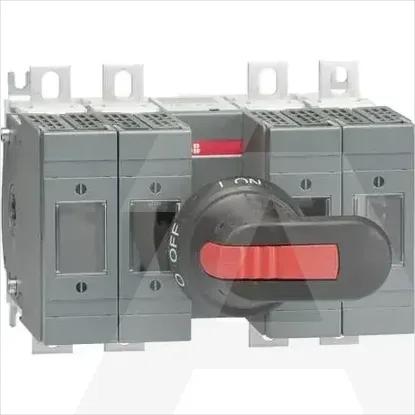

1SCA115880R1001 | OS125GD22N2P
Code: 1982284
ManufacturerABB
Catalog number1SCA115880R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019481487
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Suitable for front mountingNo
Version as safety switchYes
Conditioned rated short-circuit current Iq80kA
Position control elementFront side
Rated short-time withstand current lcw5kA
With error protectionNo
Version as main switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V110kW
Equipped with connectorsYes
Suitable for floor mountingNo
Suitable for busbar mountingYes
Type of control elementLong turning handle
Motor drive integratedNo
Motor drive optionalNo
Rated permanent current Iu125A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
