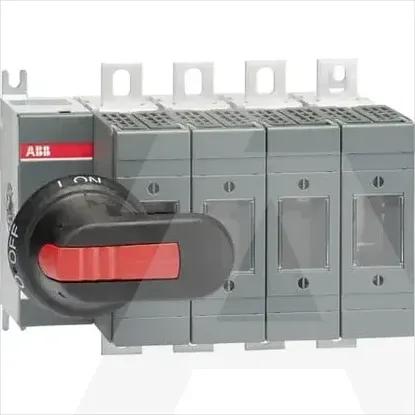

1SCA115882R1001 | OS160GD04N2P
Code: 1982285
ManufacturerABB
Catalog number1SCA115882R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019481500
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Version as safety switchYes
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V132kW
Rated short-time withstand current lcw5kA
Suitable for front mountingNo
Suitable for busbar mountingYes
With error protectionNo
Motor drive optionalNo
Position control elementLeft
Equipped with connectorsYes
Rated permanent current Iu160A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
