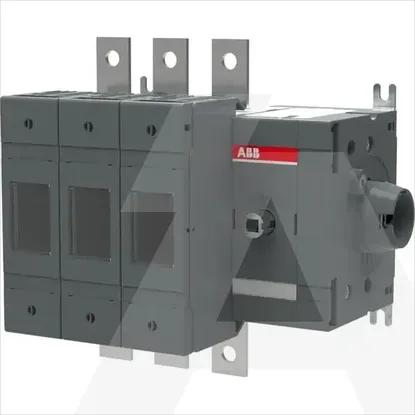

1SCA115960R1001 | OS160GBS30
Code: 1982300
ManufacturerABB
Catalog number1SCA115960R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019482194
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Cable entryOther
Type of control elementShort thumb-grip
Suitable for busbar mountingYes
Suitable for front mountingNo
Equipped with connectorsYes
Motor drive optionalNo
Rated short-time withstand current lcw5kA
Version as safety switchYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V132kW
With error protectionNo
Version as emergency stop installationNo
Position control elementRight
Version as main switchYes
Rated permanent current Iu160A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115960R1001 | OS160GBS30
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Cable entry
Other
Type of control element
Short thumb-grip
Suitable for busbar mounting
Suitable for front mounting
Equipped with connectors
Motor drive optional
Rated short-time withstand current lcw
5kA
Version as safety switch
Suitable for floor mounting
Rated operation power at AC-23, 400 V
132kW
With error protection
Version as emergency stop installation
Position control element
Right
Version as main switch
Rated permanent current Iu
160A
Number of poles
3
Suitable for fuses
Other
Max. rated operation voltage Ue AC
1000V
