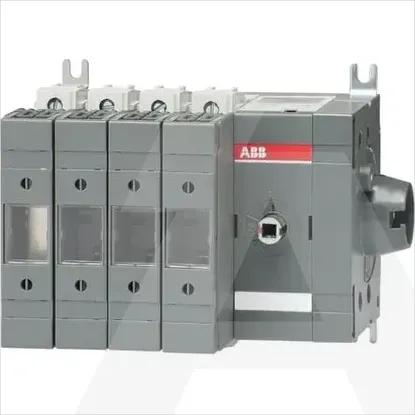

1SCA115964R1001 | OS32GDS40N1
Code: 1982302
ManufacturerABB
Catalog number1SCA115964R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019482323
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Suitable for floor mountingNo
Motor drive integratedNo
Suitable for busbar mountingYes
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Cable entryOther
Rated operation power at AC-23, 400 V22kW
Suitable for front mountingNo
Rated short-time withstand current lcw2.5kA
Version as emergency stop installationNo
Version as safety switchYes
Equipped with connectorsYes
Motor drive optionalNo
Position control elementRight
With error protectionNo
Rated permanent current Iu32A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
