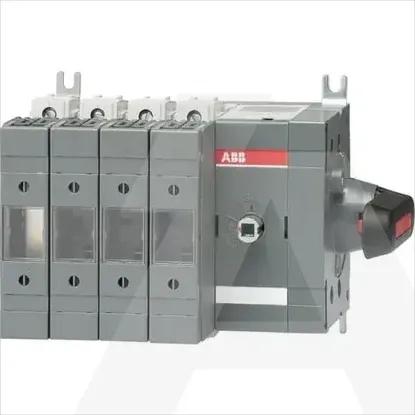

1SCA115979R1001 | OS63GBS40N1K
Code: 1982307
ManufacturerABB
Catalog number1SCA115979R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019482224
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Version as safety switchYes
Rated short-time withstand current lcw2.5kA
Suitable for floor mountingNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Suitable for front mountingNo
Position control elementRight
Rated operation power at AC-23, 400 V55kW
With error protectionNo
Motor drive optionalNo
Rated permanent current Iu63A
Number of poles4
Suitable for fusesShape A2/A3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115979R1001 | OS63GBS40N1K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Version as main switch
Type of control element
Long turning handle
Type of electrical connection of main circuit
Screw connection
Motor drive integrated
Version as emergency stop installation
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Version as safety switch
Rated short-time withstand current lcw
2.5kA
Suitable for floor mounting
Suitable for busbar mounting
Equipped with connectors
Suitable for front mounting
Position control element
Right
Rated operation power at AC-23, 400 V
55kW
With error protection
Motor drive optional
Rated permanent current Iu
63A
Number of poles
4
Suitable for fuses
Shape A2/A3
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
