1SCA116051R1001 | OS60GJS30
Code: 1982308
ManufacturerABB
Catalog number1SCA116051R1001

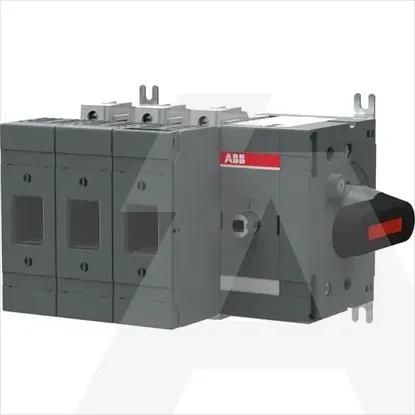

TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019482835
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V55kW
Version as emergency stop installationNo
Motor drive integratedNo
Version as safety switchYes
Type of control elementShort thumb-grip
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw2.5kA
Suitable for front mountingNo
Position control elementRight
With error protectionNo
Motor drive optionalNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Suitable for floor mountingNo
Rated permanent current Iu63A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
