Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width544.5mm
Rated permanent current Iu1250A
Number of poles3
Rated operation power at AC-3, 400 V-kW
Height306mm
Depth145.5mm
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Motor drive integratedNo
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementBlack
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V710kW
Number of switches1
Max. rated operation voltage Ue AC1000V
Device constructionComplete device in housing
Voltage release optionalNo
Motor drive optionalNo
Version as main switchYes
Rated permanent current at AC-21, 400 V1250A
Switching power at 400 V710kW
Suitable for intermediate mountingNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V1250A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

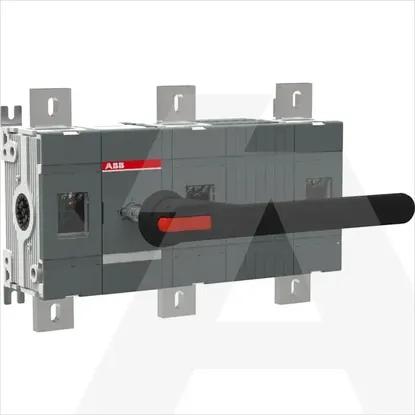

1SCA116431R1001 | OT1250E12W8P
