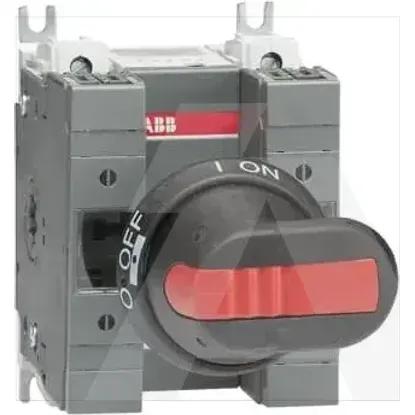

1SCA116703R1001 | OS32GD11P
Code: 1982322
ManufacturerABB
Catalog number1SCA116703R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019487069
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V22kW
Version as emergency stop installationNo
Version as safety switchYes
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw2.5kA
Suitable for busbar mountingYes
Position control elementFront side
With error protectionNo
Suitable for floor mountingNo
Suitable for front mountingNo
Equipped with connectorsYes
Motor drive optionalNo
Rated permanent current Iu32A
Number of poles2
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
