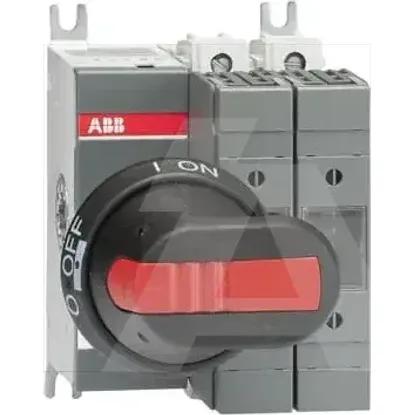

1SCA116714R1001 | OS32GD02P
Code: 1982326
ManufacturerABB
Catalog number1SCA116714R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019488011
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V22kW
Rated short-time withstand current lcw2.5kA
Cable entryOther
Motor drive integratedNo
Version as main switchYes
Type of control elementLong turning handle
Version as safety switchYes
Suitable for front mountingNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Equipped with connectorsYes
With error protectionNo
Position control elementLeft
Motor drive optionalNo
Rated permanent current Iu32A
Number of poles2
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
