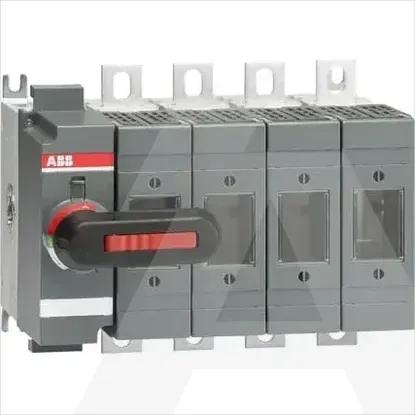

1SCA116740R1001 | OS125GD04N2K
Code: 1982338
ManufacturerABB
Catalog number1SCA116740R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019487250
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Type of control elementLong turning handle
Suitable for busbar mountingYes
Cable entryOther
Rated short-time withstand current lcw5kA
Suitable for floor mountingNo
Version as safety switchYes
Rated operation power at AC-23, 400 V110kW
Suitable for front mountingNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as main switchYes
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Position control elementLeft
Rated permanent current Iu125A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
