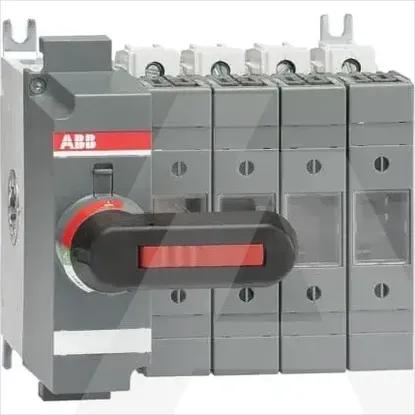

1SCA116746R1001 | OS63GB04N1K
Code: 1982341
ManufacturerABB
Catalog number1SCA116746R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019488325
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V55kW
Cable entryOther
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchYes
Suitable for front mountingNo
Suitable for busbar mountingYes
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Suitable for floor mountingNo
Equipped with connectorsYes
Position control elementLeft
With error protectionNo
Motor drive optionalNo
Rated permanent current Iu63A
Number of poles4
Suitable for fusesShape A2/A3
Max. rated operation voltage Ue AC1000V
