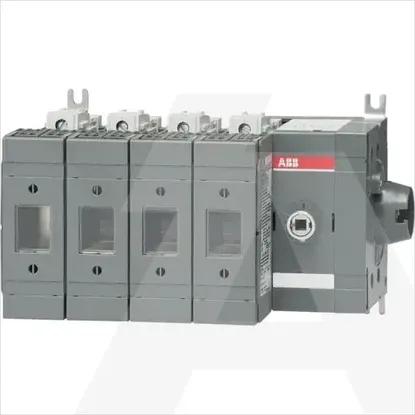

1SCA116763R1001 | OS60GJS40N1
Code: 1982346
ManufacturerABB
Catalog number1SCA116763R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019488479
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
Type of control elementShort thumb-grip
Cable entryOther
Motor drive integratedNo
Version as main switchYes
Version as safety switchYes
Rated operation power at AC-23, 400 V55kW
Suitable for front mountingNo
With error protectionNo
Suitable for floor mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw2.5kA
Equipped with connectorsYes
Position control elementRight
Suitable for busbar mountingYes
Rated permanent current Iu63A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
