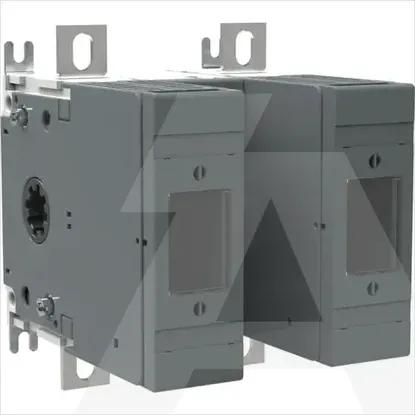

1SCA116773R1001 | OS125GD11
Code: 1982349
ManufacturerABB
Catalog number1SCA116773R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019488523
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Version as main switchYes
Rated operation power at AC-23, 400 V110kW
Version as safety switchYes
Rated short-time withstand current lcw5kA
Suitable for floor mountingNo
Position control elementFront side
Motor drive optionalNo
Suitable for busbar mountingYes
Suitable for front mountingNo
Equipped with connectorsYes
With error protectionNo
Rated permanent current Iu125A
Number of poles2
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
