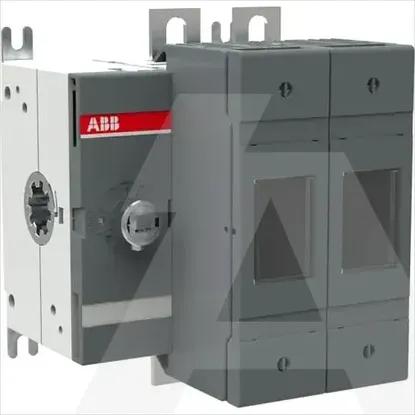

1SCA116795R1001 | OS160GB02
Code: 1982352
ManufacturerABB
Catalog number1SCA116795R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019488721
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Equipped with connectorsYes
Motor drive integratedNo
Rated short-time withstand current lcw5kA
Type of control elementShort thumb-grip
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V132kW
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Position control elementLeft
Suitable for floor mountingNo
Motor drive optionalNo
With error protectionNo
Version as safety switchYes
Suitable for busbar mountingYes
Suitable for front mountingNo
Rated permanent current Iu160A
Number of poles2
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
