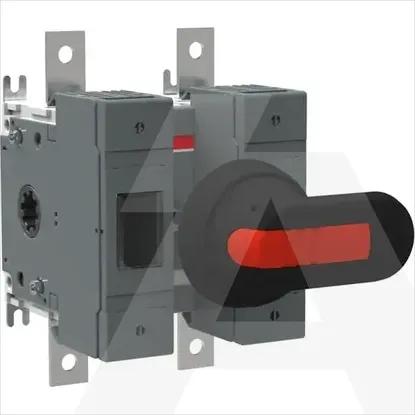

1SCA117430R1001 | OS160GB11P
Code: 1982372
ManufacturerABB
Catalog number1SCA117430R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019489025
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Version as emergency stop installationNo
Type of control elementLong turning handle
Motor drive integratedNo
Position control elementFront side
Suitable for busbar mountingYes
Rated short-time withstand current lcw5kA
Version as safety switchYes
Motor drive optionalNo
Suitable for front mountingNo
With error protectionNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V132kW
Equipped with connectorsYes
Rated permanent current Iu160A
Number of poles2
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA117430R1001 | OS160GB11P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Type of electrical connection of main circuit
Bolt connection
Conditioned rated short-circuit current Iq
80kA
Version as main switch
Version as emergency stop installation
Type of control element
Long turning handle
Motor drive integrated
Position control element
Front side
Suitable for busbar mounting
Rated short-time withstand current lcw
5kA
Version as safety switch
Motor drive optional
Suitable for front mounting
With error protection
Suitable for floor mounting
Rated operation power at AC-23, 400 V
132kW
Equipped with connectors
Rated permanent current Iu
160A
Number of poles
2
Suitable for fuses
Other
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
