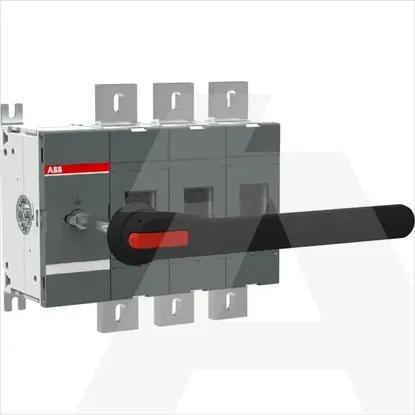

1SCA118453R1001 | OT1250EP03P
Code: 1982382
ManufacturerABB
Catalog number1SCA118453R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019501857
Details
- •OT1250EP03P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Width334.5mm
Rated operation power at AC-3, 400 V-kW
Depth145.5mm
Height306mm
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Suitable for floor mountingNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Colour control elementBlack
Version as main switchYes
Number of switches1
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw50kA
InterlockableNo
Rated operation power at AC-23, 400 V710kW
Version as safety switchNo
Type of control elementLong turning handle
Motor drive optionalNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V710kW
Voltage release optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
