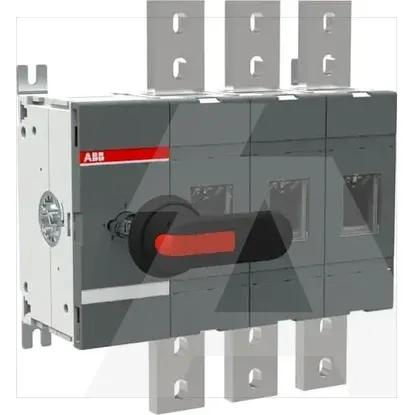

1SCA118455R1001 | OT1600EP03P
Code: 1982384
ManufacturerABB
Catalog number1SCA118455R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019501871
Details
- •OT1600EP03P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Height372mm
Depth167mm
Width334.5mm
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Number of switches1
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V710kW
Version as maintenance-/service switchYes
Motor drive optionalNo
Rated short-time withstand current lcw50kA
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V1250A
Suitable for front mounting centreNo
Version as safety switchNo
Degree of protection (NEMA)Other
Switching power at 400 V710kW
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Version as main switchYes
Voltage release optionalNo
Version as reversing switchNo
Type of control elementLong turning handle
Colour control elementBlack
Suitable for distribution board installationNo
With pre-assembled cablingNo
Rated permanent current Iu1600A
Number of poles3
Max. rated operation voltage Ue AC1000V
