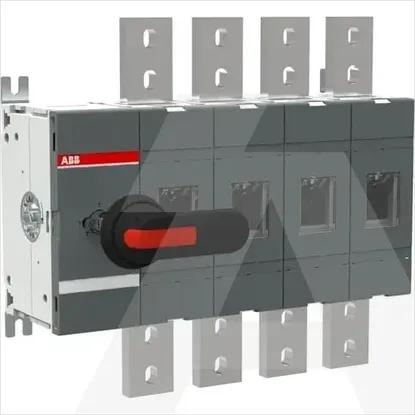

1SCA118456R1001 | OT1600EP04P
Code: 1982385
ManufacturerABB
Catalog number1SCA118456R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019501888
Details
- •OT1600EP04P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth167mm
Height372mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Width414.5mm
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
InterlockableNo
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of switches1
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw50kA
Degree of protection (IP), front sideIP00
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementLong turning handle
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V710kW
Version as emergency stop installationNo
Suitable for distribution board installationNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1250A
Device constructionComplete device in housing
Switching power at 400 V710kW
With pre-assembled cablingNo
Rated permanent current Iu1600A
Number of poles4
Max. rated operation voltage Ue AC1000V
