Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth145.5mm
Rated permanent current Iu-A
Rated operation power at AC-3, 400 V-kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Height376.5mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Width472.5mm
Number of switches1
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Motor drive integratedNo
Width in number of modular spacings-
InterlockableNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V-kW
Device constructionComplete device in housing
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Version as safety switchNo
Version as reversing switchNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw55kA
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Suitable for intermediate mountingNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

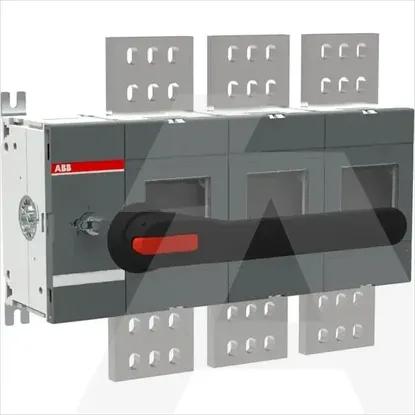

1SCA118459R1001 | OT2500EP03P
