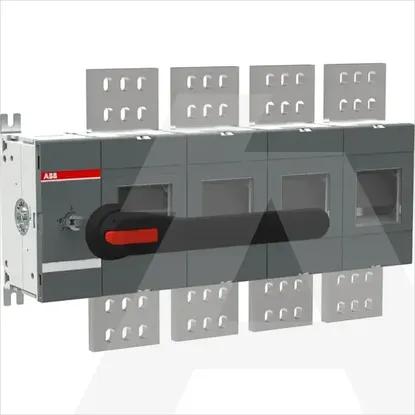

1SCA118460R1001 | OT2500EP04P
Code: 1982389
ManufacturerABB
Catalog number1SCA118460R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019501925
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth145.5mm
Height376.5mm
Width598.5mm
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Number of switches1
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw55kA
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V-kW
Width in number of modular spacings-
Colour control elementBlack
InterlockableNo
Version as emergency stop installationNo
Suitable for distribution board installationYes
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Voltage release optionalNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
