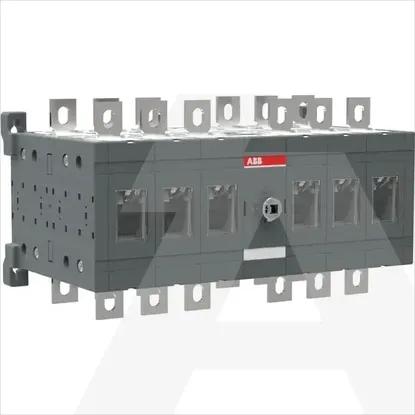

1SCA118536R1001 | OT160E33C
Code: 1982391
ManufacturerABB
Catalog number1SCA118536R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019502953
Details
- •OT160E33C CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth160mm
Width275mm
Rated operation power at AC-3, 400 V-kW
Height150mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideIP20
Number of switches1
InterlockableYes
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Version as safety switchNo
Type of control elementOther
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Suitable for distribution board installationYes
Rated operation power at AC-23, 400 V90kW
Colour control elementBlack
Rated short-time withstand current lcw8kA
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Motor drive optionalNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V160A
Degree of protection (NEMA)1
Switching power at 400 V90kW
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles6
Max. rated operation voltage Ue AC1000V
