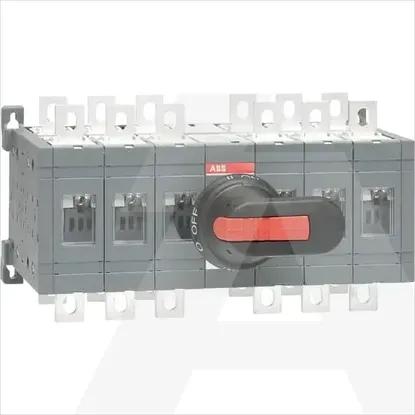

1SCA118537R1001 | OT160E33CP
Code: 1982392
ManufacturerABB
Catalog number1SCA118537R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019502960
Details
- •OT160E33CP CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth160mm
Number of auxiliary contacts as normally open contact0
Height150mm
Width275mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Number of switches1
Rated operating voltage1000 - 1000V
Type of control elementLong turning handle
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Width in number of modular spacings-
InterlockableYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw8kA
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V90kW
Suitable for floor mountingNo
Voltage release optionalNo
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Switching power at 400 V90kW
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V160A
Rated permanent current Iu-A
Number of poles6
Max. rated operation voltage Ue AC1000V
