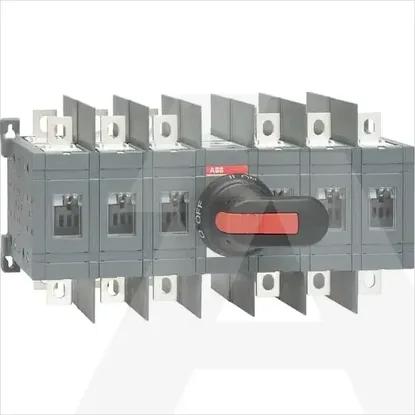

1SCA118603R1001 | OT160E33WCP
Code: 1982395
ManufacturerABB
Catalog number1SCA118603R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019503226
Details
- •OT160E33WCP CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width323mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Height170mm
Depth160mm
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Version as emergency stop installationNo
InterlockableYes
Number of switches1
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V90kW
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Width in number of modular spacings-
Type of control elementLong turning handle
Version as main switchYes
Colour control elementBlack
Suitable for floor mountingNo
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Switching power at 400 V90kW
Rated permanent current at AC-23, 400 V160A
Rated permanent current at AC-21, 400 V160A
With pre-assembled cablingNo
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current Iu-A
Number of poles6
Max. rated operation voltage Ue AC1000V
