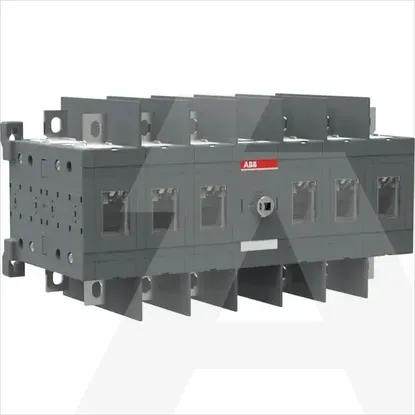

1SCA118604R1001 | OT160E33WC
Code: 1982396
ManufacturerABB
Catalog number1SCA118604R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019503233
Details
- •OT160E33WC CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width323mm
Height170mm
Motor drive integratedNo
Depth160mm
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V90kW
Version as emergency stop installationNo
Number of switches1
Rated short-time withstand current lcw8kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Switching power at 400 V90kW
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V160A
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)1
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles6
Max. rated operation voltage Ue AC1000V
