Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as reversing switchNo
Version as safety switchNo
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu-A
Rated permanent current at AC-23, 400 V400A
Number of switches1
Switching power at 400 V220kW
Rated permanent current at AC-21, 400 V400A
Rated operating voltage1000 - 1000V
Rated operation power at AC-23, 400 V220kW
Max. rated operation voltage Ue AC1000V
Conditioned rated short-circuit current Iq-kA
Rated short-time withstand current lcw15kA
Number of poles6
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Degree of protection (NEMA)1
Suitable for front mounting 4-holeYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP20
Suitable for intermediate mountingNo
Suitable for floor mountingNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device plug-in technique
Colour control elementBlack
Type of control elementOther
Width353mm
Depth203mm
Width in number of modular spacings-
Height185mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

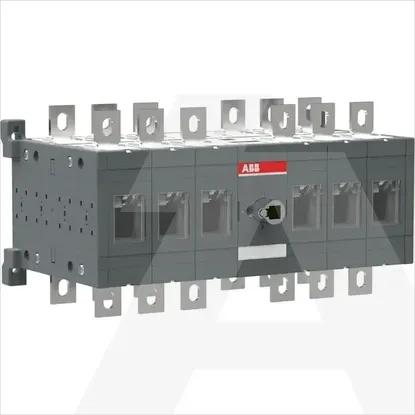

1SCA118628R1001 | OT400E33C
