Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height185mm
Width353mm
Rated operation power at AC-3, 400 V-kW
Depth203mm
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu-A
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of poles6
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Width in number of modular spacings-
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementLong turning handle
Number of switches1
Version as emergency stop installationNo
Device constructionBuilt-in device plug-in technique
Colour control elementBlack
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-23, 400 V220kW
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Version as safety switchNo
Rated short-time withstand current lcw15kA
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Version as reversing switchNo
Rated permanent current at AC-21, 400 V400A
With pre-assembled cablingNo
Switching power at 400 V220kW
Rated permanent current at AC-23, 400 V400A
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

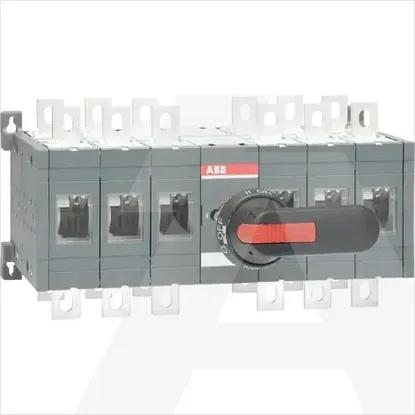

1SCA118629R1001 | OT400E33CP
